LEM ... Open Loop technology 雙電源供電_基座型
|
Model
|
|
 |
 (貫穿孔 21 x 64mm)
|
|
額定電流 (Ipn)
|
0-50A ~ 0-600A
|
0-500A
|
0-1500A
|
|
工作電壓
|
±15V
|
±15V
|
±15V
|
|
精確度
|
±1%
|
±1%
|
±1%
|
|
最大測量電流 (Ipm)
|
1.5 Ipn ~ 3 Ipn
|
1000A
|
4500A
|
|
輸出電壓
|
±4V @Ipn (RL = 10kΩ)
|
±4V @Ipn (RL = 10kΩ)
|
±4V @Ipn (RL = 10kΩ)
|
|
響應時間 (90% of Ipn)
|
<3 us
|
<3 us
|
<5 us
|
|
頻寬 (-3 dB)
|
DC ... 50kHz
|
DC ... 50kHz
|
DC ... 25kHz
|
|
Remark:
高頻特性只能針對小信號的應用，以免造成鐵芯發熱，而將感測器燒毀。
|
|||

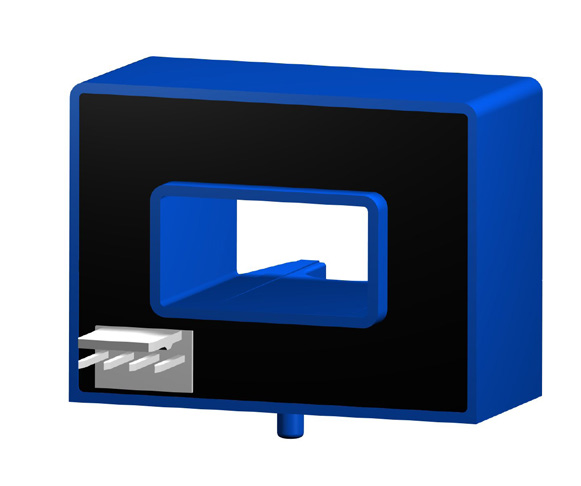

HAS 50 ... 600-S (貫穿孔 10 x 20mm)
 |
額定電流 (Ipn): 0-50A ~ 0-600A
工作電壓: ±15V
精確度: ±1%
最大測量電流 (Ipm): 1.5 Ipn ~ 3 Ipn
輸出電壓: ±4V @Ipn (RL = 10kΩ)
響應時間 (90% of Ipn): <3 us
頻寬 (-3 dB): DC ... 50kHz
|

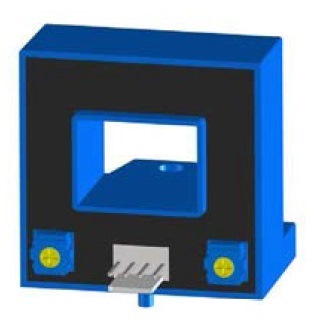

HAL 500-S (貫穿孔 15 x 20mm)
|
額定電流 (Ipn): 0-500A
工作電壓: ±15V
精確度: ±1%
最大測量電流 (Ipm): 1000A
輸出電壓: ±4V @Ipn (RL = 10kΩ)
響應時間 (90% of Ipn): <3 us
頻寬 (-3 dB): DC ... 50kHz
|
HAX 1500-S (貫穿孔 21 x 64mm)
|
額定電流 (Ipn): 0-1500A
工作電壓: ±15V
精確度: ±1%
最大測量電流 (Ipm): 4500A
輸出電壓: ±4V @Ipn (RL = 10kΩ)
響應時間 (90% of Ipn): <5 us
頻寬 (-3 dB): DC ... 25kHz
|
Remark:
高頻特性只能針對小信號的應用，以免造成鐵芯發熱，而將感測器燒毀。
